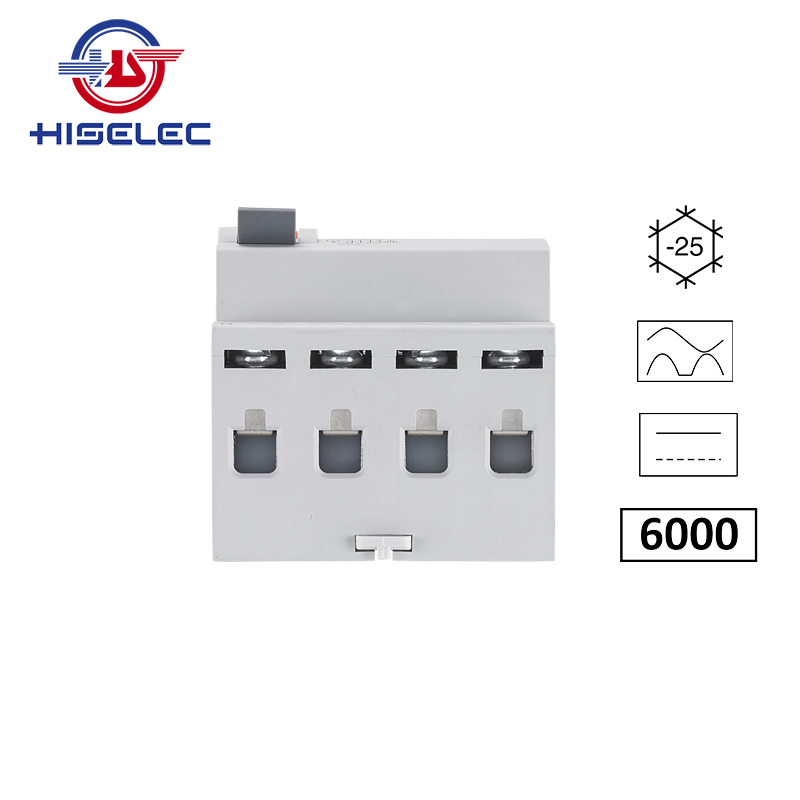

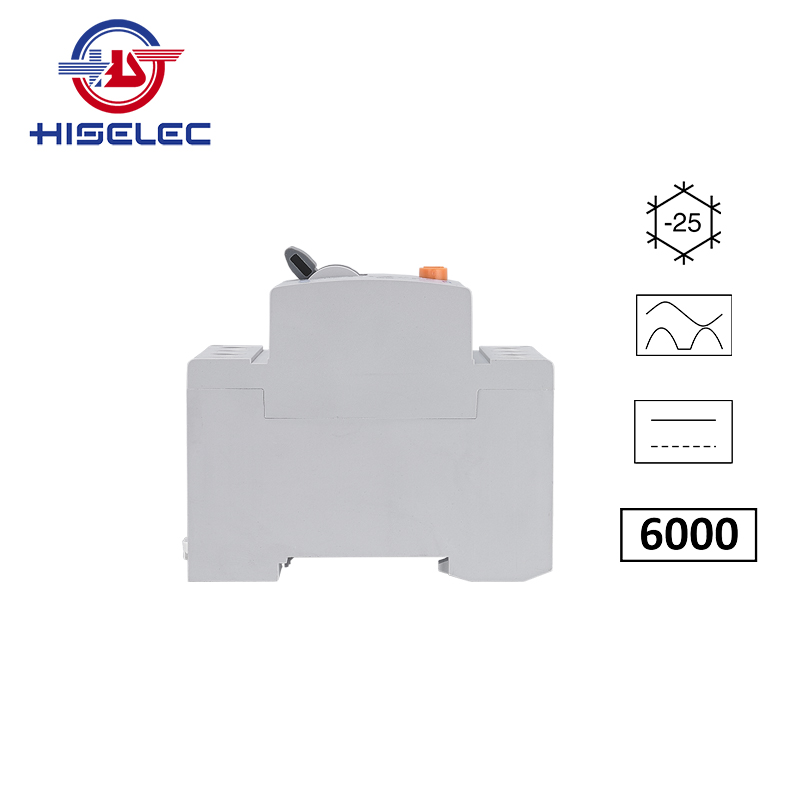

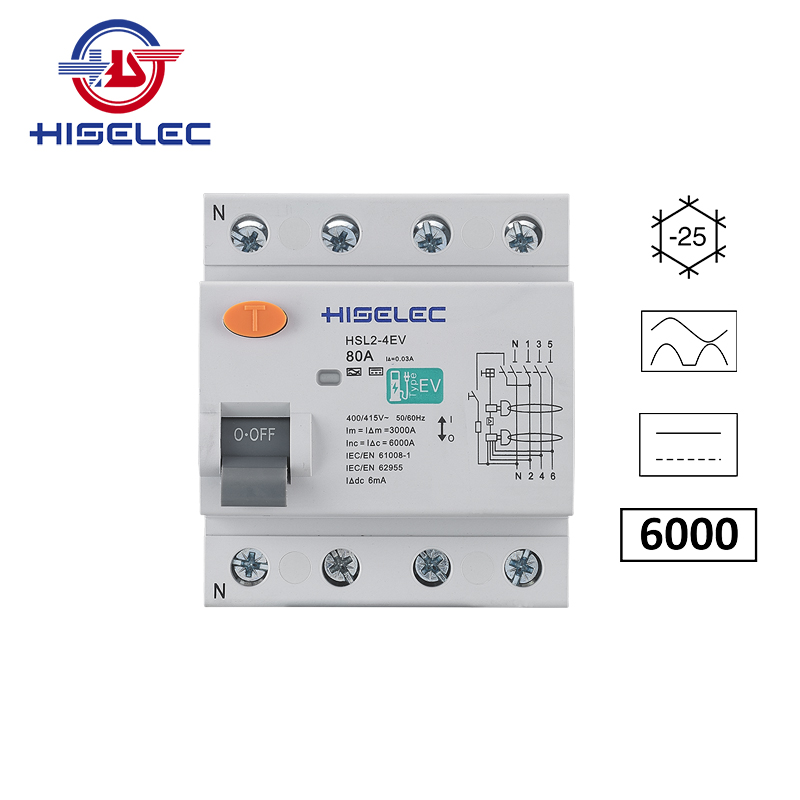

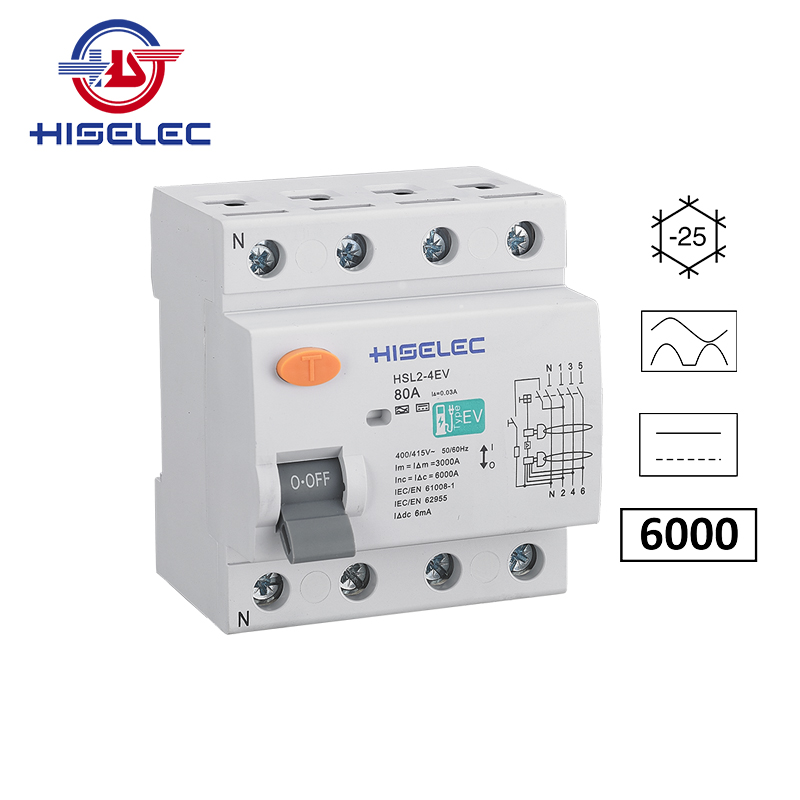

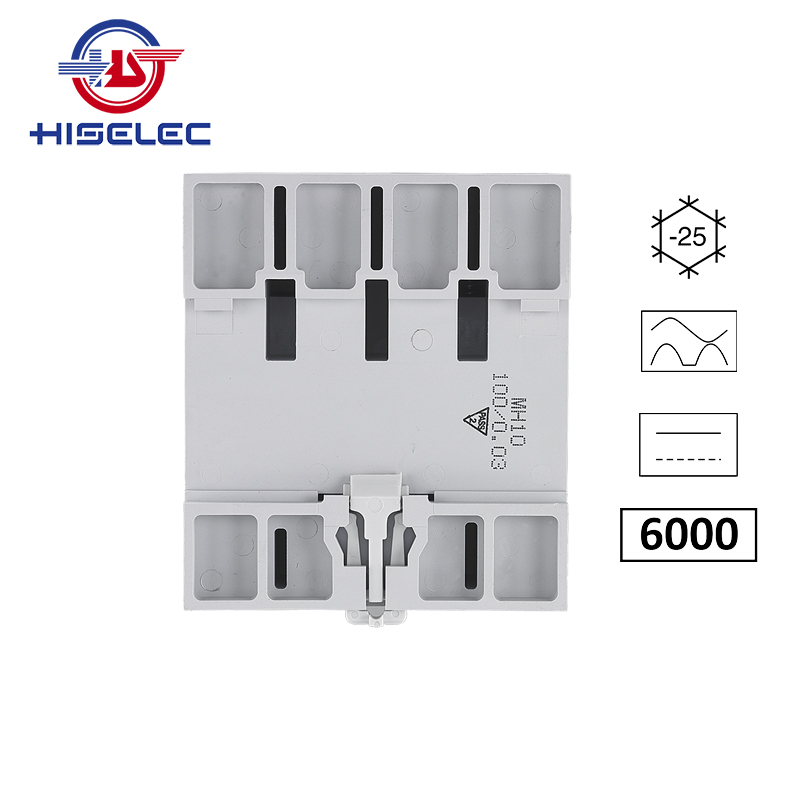

RCCB HSL2-4EV type EV 6kA 3P+N
-
Share:
The HSL2 series 6kA type EV 1P+N & 3P+N RCCBs(residual current-circuit breaker) which can automatically and immediately cut off power supply once people suffers from electric shock or leakage current higher than specification value, so it can protect people’s security and avoid the damage to equipment. It’s main use is in EV-, PV- and battery solutions (equipment without the 6mA declarations). The RCCB comes in 1P+N, 36mm width (2 modules) and in 3P+N 72mm width (4 modules) and this in combination with a high breaking capacity of 6kA. The series ensures the best possible safety for people and equipment.
Description
HSL2 series type EV RCCB compliant to product standard IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62955 and with the following main technical features:
• Breaking capacity
| 6,000 kA |
• Rated residual making and breaking capacity
| 800 A |
Electromagnetic (IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62955);
• Type EV；
• Sensitivity
| AC | 30mA |
| DC | 6mA |
• Tripping characteristics
| B | C |
• Rated current
| 16 | 25 | 32 | 40 | 63 | 80A |
Application benefits:
• Supply possible both from top and bottom;
• Busbar connection (above and below) up to 16mm² and cable connection up to 25mm² cables;
• Easy troubleshooting and reduced downtime for maintenance operations thanks to the earth fault indicator (blue/red flag on the window);
Technical
| Type | HSL2-2EV | HSL2-4EV | |||
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62955; | ||||
| Country of origin | CHINA | ||||
|
Electrical features |
Type (wave form of the earth leakage sensed) | Type EV (A+smoothing DC) | |||
| Number of poles | 1P+N | 3P+N | |||
| Rated current | In | A | 16, 25, 32, 40, 63, 80 A | 16, 25, 32, 40, 63, 80 A | |
| Rated sensitivity | IΔn: AC | mA | 30 mA | 30 mA | |
| IΔn: DC | mA | 6 mA | 6 mA | ||
| Rated voltage | Ue | V | 220/230/240 V | 380/400/415 V | |
| Operating time | Type A / Type AC | Instantaneous | |||
| Insulation voltage | Ui | V | 500V AC | ||
| Overvoltage category | III | ||||
| Pollution degree | 2 | ||||
| Operating voltage of circuit test | V | 187 - 264 V | 230 - 485 V | ||
| Rated frequency | Hz | 50/60 Hz | |||
| Rated breaking capacity acc. to IEC/EN 61008-1 | Inc | A | 6,000 A | ||
|
Rated residual making and breaking capacity acc.to IEC/EN 61008-1 |
IΔm | A | 800 A | ||
| Rated impulse withstand voltage (1.2/50μs) | Uimp | kV | 4 kV | ||
|
Mechanical features |
Housing | Insulation group I - II, RAL 7035 | |||
| Toggle | Insulation group II, RAL 5017 | ||||
| Test button | Insulation group II, RAL 2000 | ||||
| Contact position indication | Green / Red window | ||||
| Earth fault trip indication | White window | ||||
| Electrical life | Operations | 4,000 cycles | |||
| Mechanical life | Operations | 10,000 cycles | |||
| Protection degree acc. to EN 60529 | Housing | IP4X | |||
| Terminals | IP2X | ||||
| Shock resistance acc. to IEC/EN 60068-2-27 | 25g - 2 shocks - 13ms | ||||
| Vibration resistance acc. to IEC/EN 60068-2-6 | 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz | ||||
| Environmental conditions (damp heat) acc. to IEC/EN 60068-2-30 | °C/RH | 28 cycles with 55°C/90-96% and 25°C/95-100% | |||
| Reference temperature for setting of thermal element | °C | 30 °C | |||
| Ambient temperature (with daily average ≤ +35 °C) | °C | -25… +40 °C | |||
| Storage temperature | °C | -40… +70 °C | |||
| Installation | Terminal type | Twin-purpose terminal (lift / open-mouthed) | |||
| Terminal size for cables | bottom / top | mm² | 25/35 mm² | ||
| Terminal size for PIN busbar | bottom / top | mm² | 10/16 mm² | ||
| Solid /stranded wiring |
1x 1mm² - 35mm² 2 x 1mm² - 16mm² * |
||||
| Flexible wires with or without ferrules |
1x 1mm² - 25mm² 2 x 1mm² - 10mm² * |
||||
| Tightening torque | bottom / top | 2 Nm | |||
| Stripping length of the cable | 10 mm | ||||
| Mounting |
On DIN rail EN 60715 (35mm) by means of mounting clip |
||||
| Mounting position | Any | ||||
| Connect from | Top/bottom terminals | ||||
| Dimensions (H x W x D) | mm | 85 x 36 x 78 mm | 85 x 72 x 78 mm | ||
| Weight | kg | 0.18 kg | 0.31 kg | ||
| Package |
Packing A (Individual box) |
Quantity | pieces | 1 | 1 |
| Dimension (H*W*D) | mm | 90*37*78 mm | 88*75*80 mm | ||
| Weight | kg | 0.2 kg | 0.33 kg | ||
|
Packing B (*A) (Master carton) |
Quantity | pieces | 60 | 30 | |
| Dimension (H*W*D) | mm | 470*262*177 mm | 400*280*185 mm | ||
| Weight | kg | 12.48 kg | 10.42 kg | ||
|
Combination with auxiliary elements |
Auxiliary contact | NA (yes) | NA (yes) | ||
| Allarm contact | NA (yes) | NA (yes) | |||
| Shunt trip | NA (yes) | NA (yes) | |||
| Auxiliary contact for bottom fitting | NA (yes) | NA (yes) | |||
| Undervoltage release | NA (yes) | NA (yes) | |||
| Overvoltage release | NA (yes) | NA (yes) | |||
| Motor operating device | NA (yes) |
NA (yes) |
|||
