RCCB HSL1-2A type A 10kA 1P+N
-
Share:

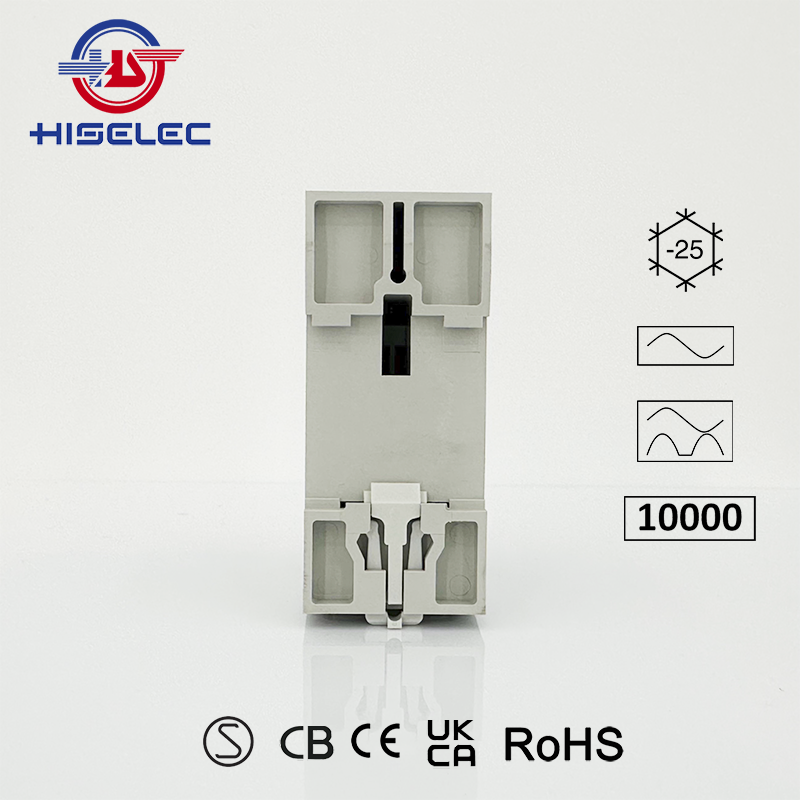

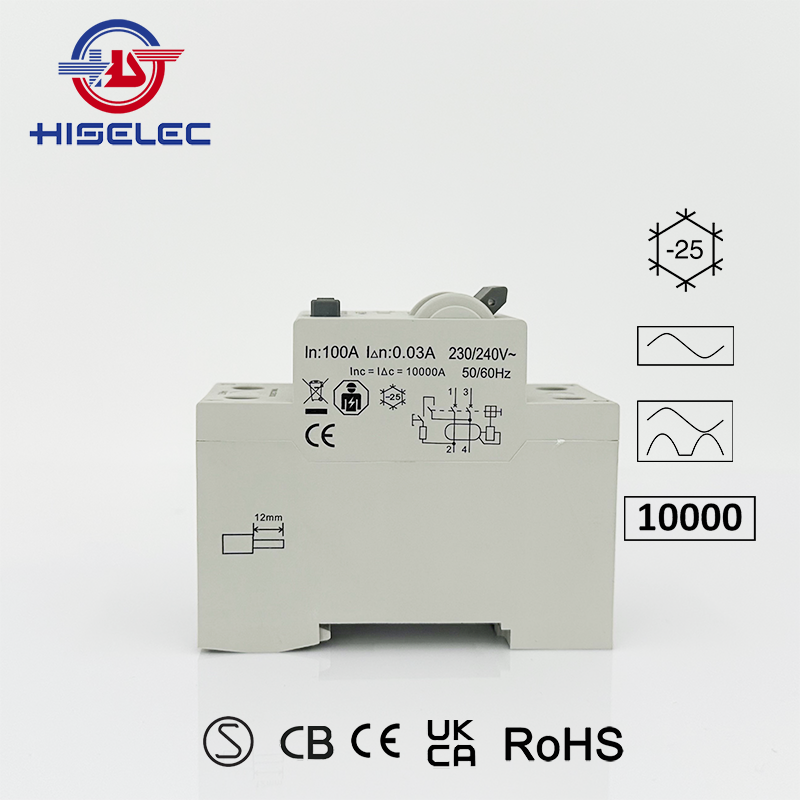

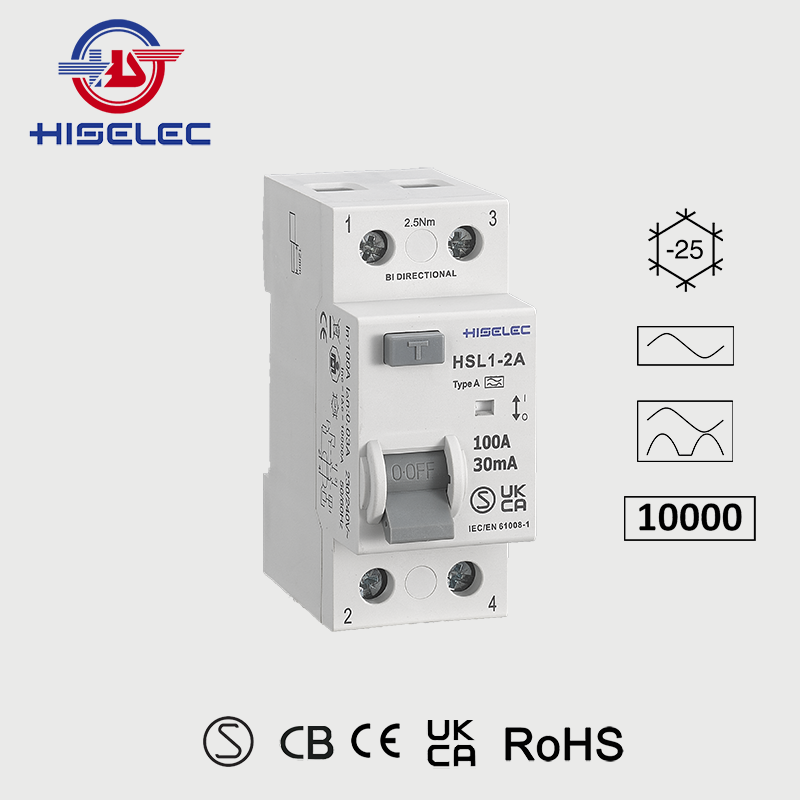

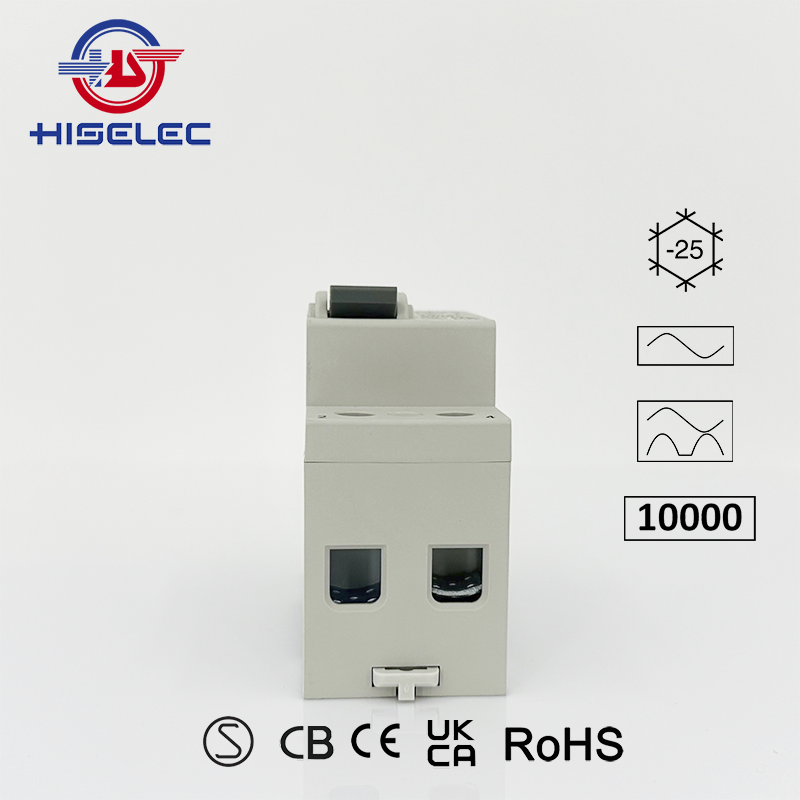

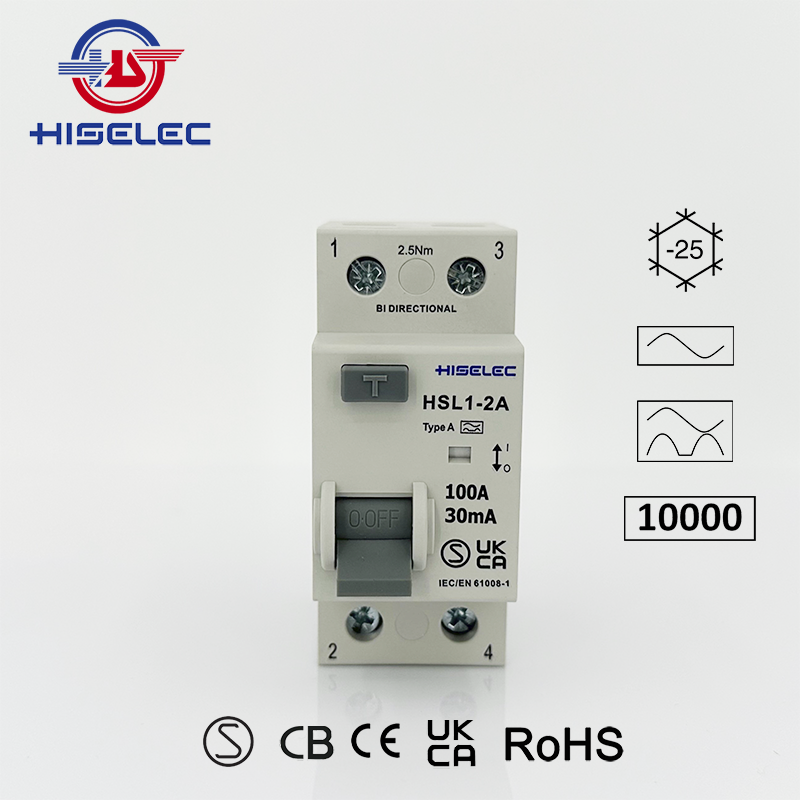

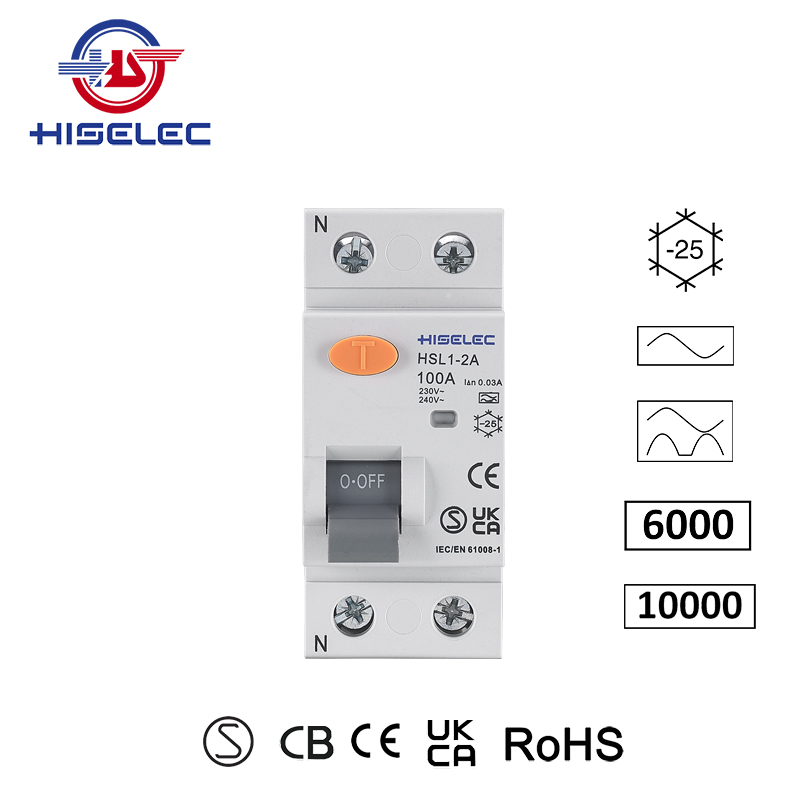

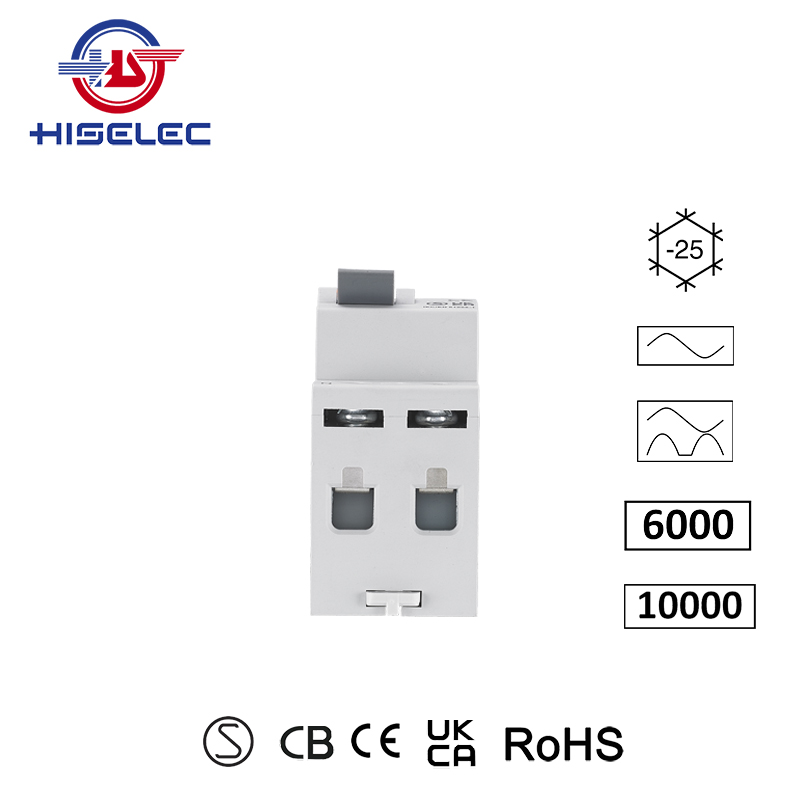

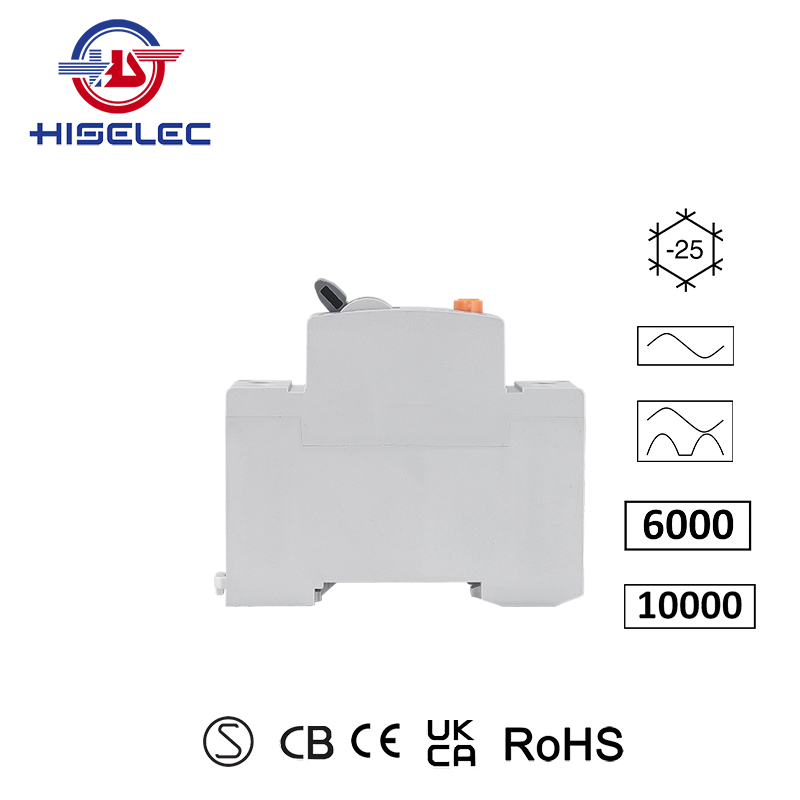

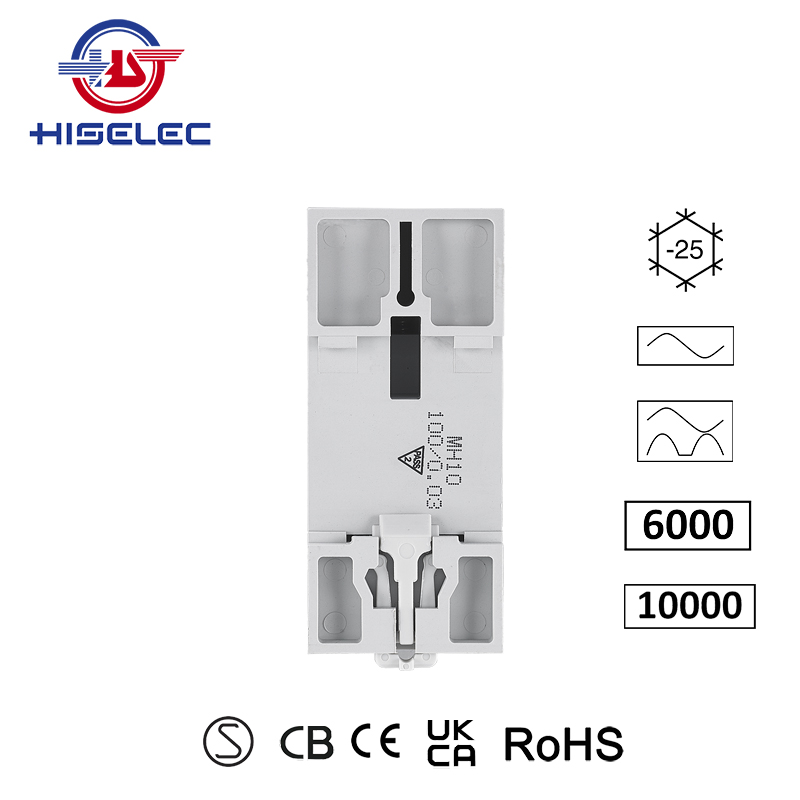

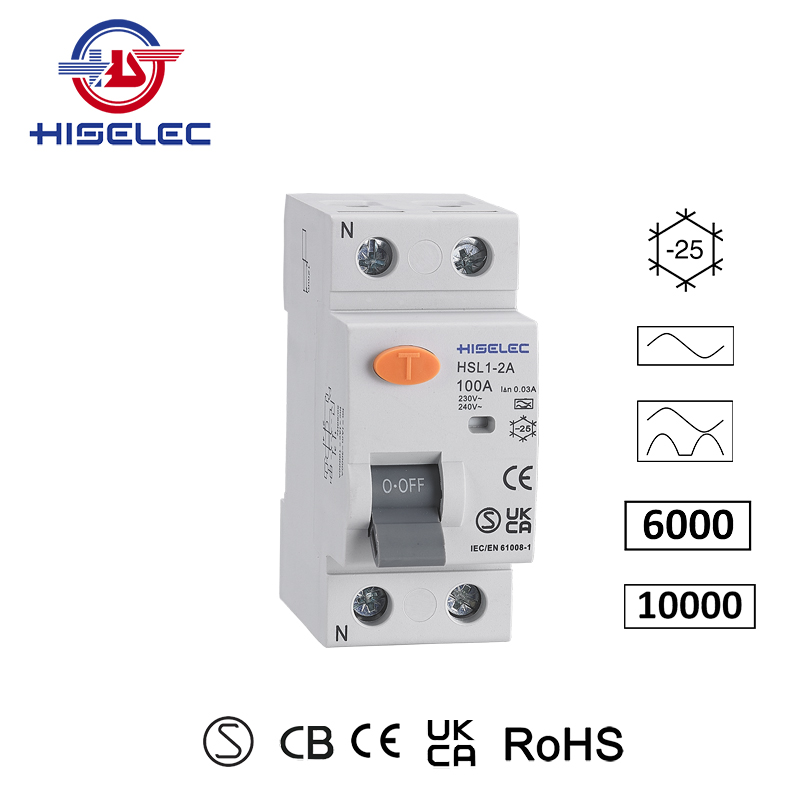

The HSL1 series 10kA type A 1P+N & 3P+N RCCBs (residual current-circuit breaker) which can automatically and immediately cut off power supply once people suffers from electric shock or leakage current higher than specification value, so it can protect people’ s security and avoid the damage to equipment. The RCCB comes in 1P+N 36mm width (2 modules) and in3P+N 72mm width (4 modules) and this in combination with a high breaking capacity of 10kA. The series ensures the best possible safety for people and equipment.
Description
HSL1 series type A RCCB compliant to product standard IEC/EN 61008-1, IEC/EN 61008-2-1 and with the following main technical features:
• Breaking capacity
| 6,000 kA |
• Rated residual making and breaking capacity
800 A
Electromagnetic (IEC/EN 61008-1, IEC/EN 61008-2-1;
• Type A 和 Type AC；
• Sensitivity
| 30 | 100 | 100mA |
• Tripping characteristics
| B | C |
• Rated current
| 25 | 32 | 40 | 63 | 80 | 100A |
Application benefits:
• Supply possible both from top and bottom;
• Busbar connection (above and below) up to 16mm² and cable connection up to 25mm² cables;
• Easy troubleshooting and reduced downtime for maintenance operations thanks to the earth fault indicator (blue/red flag on the window);
Technical
| Type | HSL1-2A | HSL1-4A | |||
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1; | ||||
| Certificate | SEMKO, CB, CE, UKCA, RoHS | ||||
| Country of origin | CHINA | ||||
|
Electrical features |
Type (wave form of the earth leakage sensed) |
Type A Type AC |
|||
| Number of poles | 2P | 4P | |||
| Rated current | In | A | 25, 32, 40, 63, 80, 100 A | 25, 32, 40, 63, 80, 100 A | |
| Rated sensitivity | IΔn | mA | 30, 100, 300 mA | 30, 100, 300 mA | |
| Rated voltage | Ue | V | 220/230/240 V | 380/400/415 V | |
| Operating time | Type A / Type AC | Instantaneous | |||
| Insulation voltage | Ui | V | 500V AC | ||
| Overvoltage category | III | ||||
| Pollution degree | 2 | ||||
| Operating voltage of circuit test | V | 187 - 264 V | 230 - 485 V | ||
| Rated frequency | Hz | 50/60 Hz | |||
| Rated breaking capacity acc. to IEC/EN 61008-1 | Inc | A | 10,000 A | ||
|
Rated residual making and breaking capacity acc.to IEC/EN 61008-1 |
IΔm | A | 800 A | ||
| Rated impulse withstand voltage (1.2/50μs) | Uimp | kV | 4 kV | ||
| Mechanical features | Housing | Insulation group I - II, RAL 7035 | |||
| Toggle | Insulation group II, RAL 5017 | ||||
| Test button | Insulation group II, RAL 2000 | ||||
| Contact position indication | Green / Red window | ||||
| Earth fault trip indication | White window | ||||
| Electrical life | Operations | 4000 cycles | |||
| Mechanical life | Operations | 10000 cycles | |||
| Protection degree acc. to EN 60529 | Housing | IP4X | |||
| Terminals | IP2X | ||||
| Shock resistance acc. to IEC/EN 60068-2-27 | 25g - 2 shocks - 13ms | ||||
| Vibration resistance acc. to IEC/EN 60068-2-6 | 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz | ||||
| Environmental conditions (damp heat) acc. to IEC/EN 60068-2-30 | °C/RH | 28 cycles with 55°C/90-96% and 25°C/95-100% | |||
| Reference temperature for setting of thermal element | °C | 30 °C | |||
| Ambient temperature (with daily average ≤ +35 °C) | °C | -25… +40 °C | |||
| Storage temperature | °C | -40… +70 °C | |||
| Installation | Terminal type | Twin-purpose terminal (lift / open-mouthed) | |||
| Terminal size for cables | bottom / top | mm² | 25/35 mm² | ||
| Terminal size for PIN busbar | bottom / top | mm² | 10/16 mm² | ||
| Solid /stranded wiring |
1x 1mm² - 35mm² 2 x 1mm² - 16mm² * |
||||
| Flexible wires with or without ferrules |
1x 1mm² - 25mm² 2 x 1mm² - 10mm² * |
||||
| Tightening torque | bottom / top | 2 Nm | |||
| Stripping length of the cable | 10 mm | ||||
| Mounting |
On DIN rail EN 60715 (35mm) by means of mounting clip |
||||
| Mounting position | Any | ||||
| Connect from | Top/bottom terminals | ||||
| Dimensions (H x W x D) | mm | 90 x 36 x 72 mm | 90 x 72 x 72 mm | ||
| Weight | kg | 0.18 kg | 0.31 kg | ||
| Package |
Packing A (Individual box) |
Quantity | pieces | 1 | 1 |
| Dimension (H*W*D) | mm | 90*37*78 mm | 88*75*80 mm | ||
| Weight | kg | 0.2 kg | 0.33 kg | ||
|
Packing B (*A) (Master carton) |
Quantity | pieces | 60 | 30 | |
| Dimension (H*W*D) | mm | 470*262*177 mm | 400*280*185 mm | ||
| Weight | kg | 12.48 kg | 10.42 kg | ||
|
Combination with auxiliary elements |
Auxiliary contact | NA (yes) | NA (yes) | ||
| Alarm contact | NA (yes) | NA (yes) | |||
| Shunt trip | NA (yes) | NA (yes) | |||
| Auxiliary contact for bottom fitting | NA (yes) | NA (yes) | |||
| Undervoltage release | NA (yes) | NA (yes) | |||
| Overvoltage release | NA (yes) | NA (yes) | |||
| Motor operating device | NA (yes) | NA (yes) | |||
