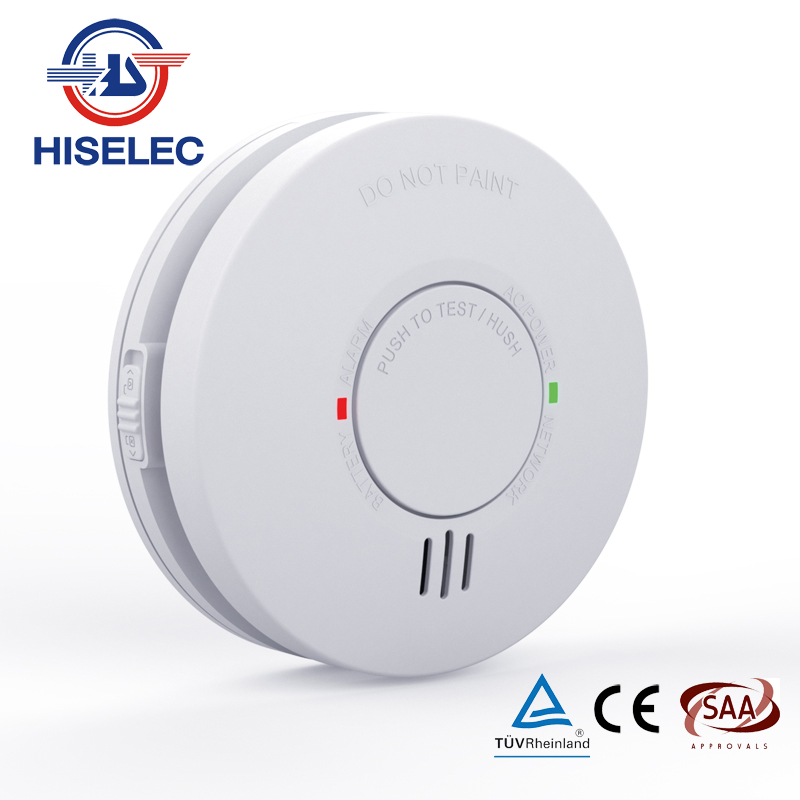

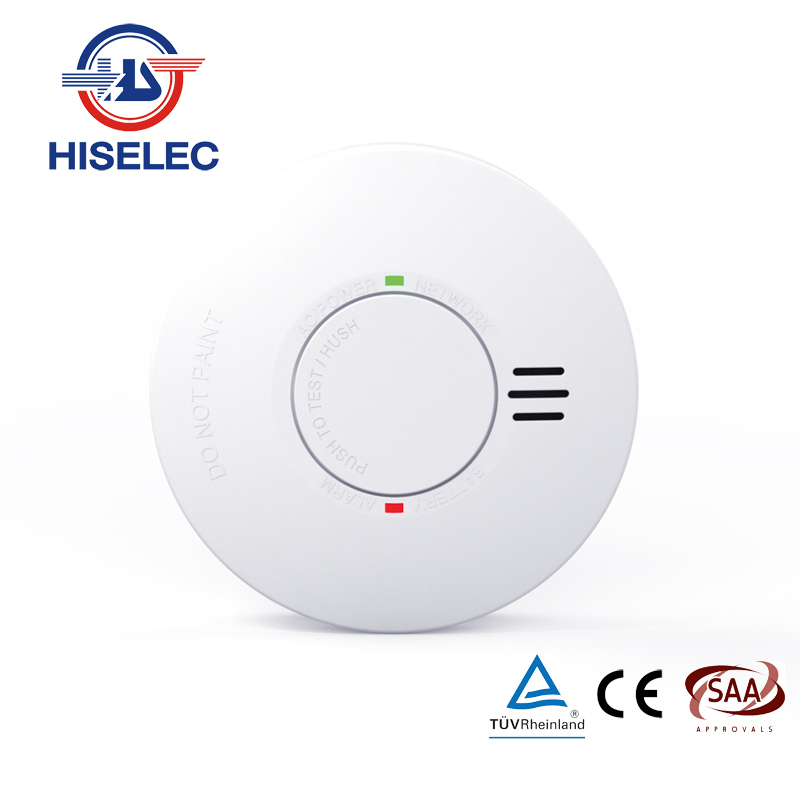

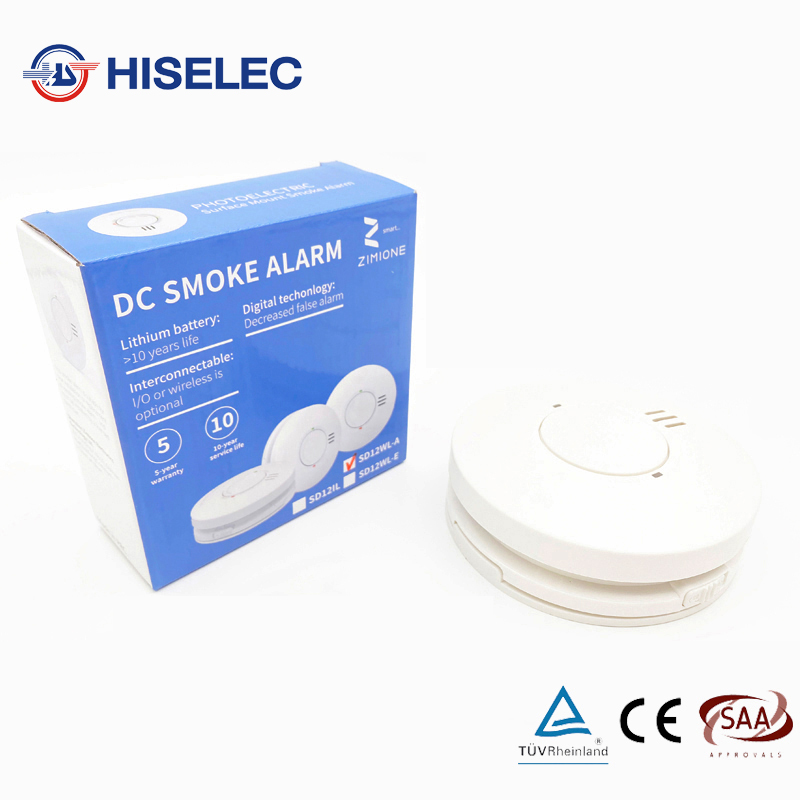

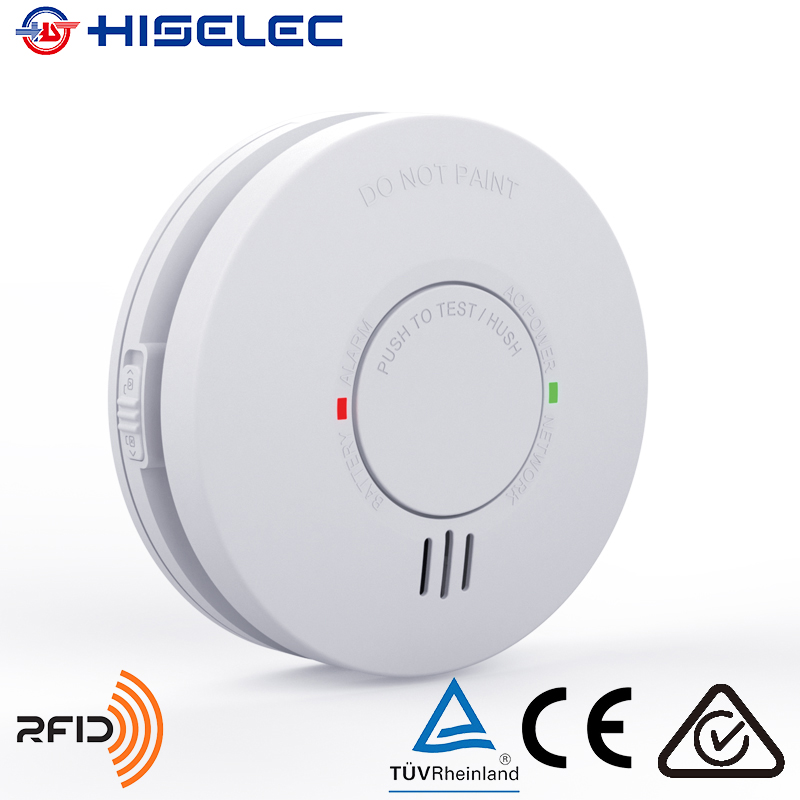

DC smoke detector RF SD12WL-E / A
-
Share:
HISELEC smoke detector were designed with the most modernized structure and appearance.
We have both AC type and DC type, which also with 10 years long lifespan.
General idea it has below advantage:
1.Environmental protection;
2.Affordable and easy to user installation;
3.High Reliable;
4.Easy Integration;
Description
Product type | SD12WL-E (Europe) / SD12WL-A (Australia) |
Description | DC main power 3V lithium 1500mAh replaceable battery, I/O or RF wireless for interconnection, 10 years battery life, build in RF wireless module (433MHz or 868MHz). |
HISELEC had accumulated rich technical experience on hardware technology, application software, products reliability and circuits design. We have gained quantities of patents for utility models
and patent for invention. HISELEC have a top and professional strong R&D team with more than 10 experts, including industry design, hardware, software, firmware, structure, APP, ID and testing.
Our experts had been worked on respective industries more than 15 years in world-renowned brands and companies. HISELEC is regarded as one of the rapid growing company in security and smart industry.
HISELEC will continue developing new technology and products to meet the market demands and customer customization.
We are ready to protect the safety of the families and to create a smart comfortable living space for you.
HISELEC is actively to promote the international development strategy and establish a close working relationship with many international brands and Institutions of higher learning in China.
We will seize the opportunity to innovate our own products continuously and accelerate of internationalization to achieve economies of scale and become a leading ODM/OEM manufacturer.
We are always looking for sincere and mutual cooperators all over the world. Welcome to read our catalogue to find out your interested products and known more about our company.
Please do not hesitate to contact us.
Outstanding:
3V DC replaceable battery power supply with I/O port, ultra-low power consumption, 10-year-life span;
Wire interconnection up to 48 pieces.
Product Feature
1 .Compact size, outline size is Ø120*40mm;
2. Up to 24 pieces RF wireless interconnection in a network;
3. Digital technology, less false alarm;
4. Insect-proof nest to prevent insects entering the sensor;
5. I/O port for interconnection; WiFi/ZigBee trigger for Apps.
Technical
Product Type | SD12WL-E (Europe) / SD12WL-A (Australia) |
Certificate | TUV, CE, RCM |

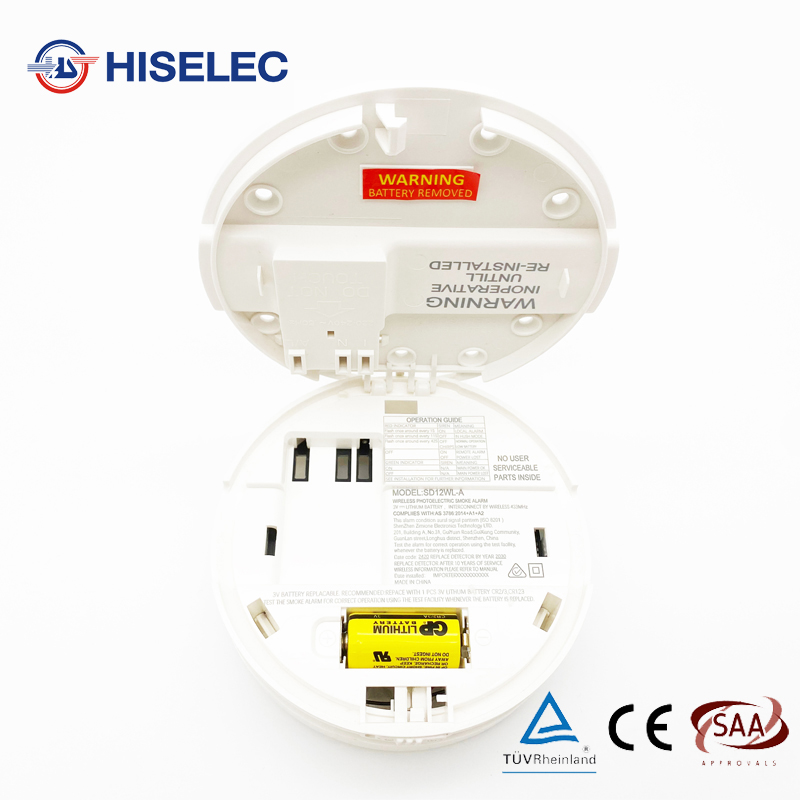

Supply | 3V DC replaceable Battery |
Battery Type | CR123 or CR2/3 Lithium 1500mAh Battery |
Battery Life | >10 years |
Operation Current | 10μA in standby, 50mA in alarming |
Detection Type | Smoke |

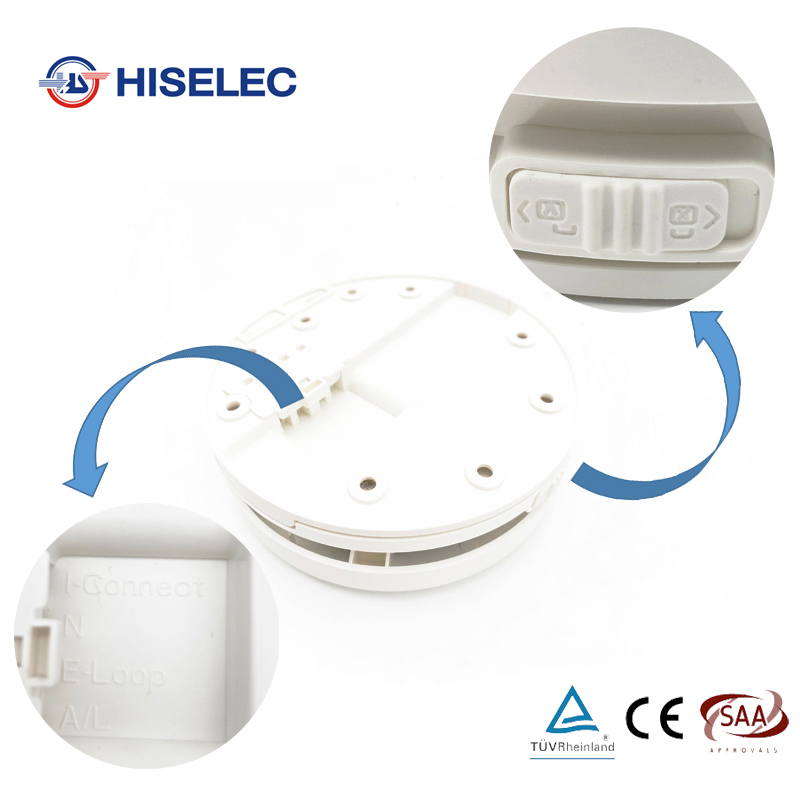

Interconnectable | Hard wires by I/O ports up to 48 pieces or RF interconnection up to 24 pieces |
RF Frequency | 868MHz (Europe) or 433MHz (Australia) |
Function Available | Hush Function |
Self-test of smoke detection | |
Local alarm | |
Control Type | Button for test/ hush function |
Sound Pattern | ISO8201 |
Smoke Sensitivity | 0.1-0.18dB/m |
Directional Depending | <1.4 |
Response Time | Approx. 8s |
Noise Level | Minimum 85 dB at 3m |
Time Delay Range | 8-15 min. for hush |
Local Signal | Sound: Alarm |
Sound: Signal | |
Visual: 1 red LED light for warning and low battery. | |
Type Of Installation | Indoor |
Device Mounting | Surface |
Fixing Mode | By screws |
Warranty | 5 years |
Diameter | 120 mm |
Height | 40 mm |
Ambient Air Temperature For Operation | 0......45 C° |
Relative Humidity | 10......92% |
Standards To Comply | EN14604-2005, AS3786-2014 |
