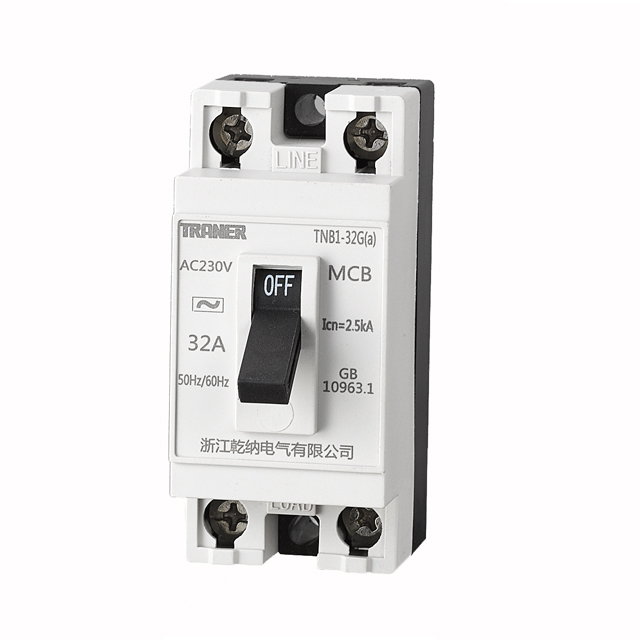

TNB1-32G(a) MCB
-
Share:
Product type: TNB1-32G(a)
Protection: Over-load & Short-circuit
Rated current(A), In: 16A, 20A, 25A, 32A
Characteristic: C curve(32A), D curve(16A, 20A, 25A)
NextTNB1-32G(b) MCB
Description
Technical
TNB1-32G series MCB | ||
Product type | TNB1-32G(a) | |
Protection | Over-load & Short-circuit | |
Rated current(A), In | 16A, 20A, 25A, 32A | |
Characteristic | C curve(32A), D curve(16A, 20A, 25A) | |
Poles | 2 poles | |
Breaking capacity(kA) | 2.5 kA | |
Rated voltage(V), Ue | 110V AC, 220V AC | |
Standard | IEC/EN 60898-1, GB 10963.1 | |
Type of trip | Over-load | Thermal / Bimetallic(1E/2E) |
Short-circuit | Electro-magnetic | |
Endurance | Electrical life | 1000 operations |
Mechanical life | 2000 operations | |
Material of body | Base | Bakelite |
Cover in grey color | Plastic | |
Cover in black color | Bakelite | |
Type of operation | AC | |
Length*Width*Height(mm) | 70mm*32mm*53mm |
