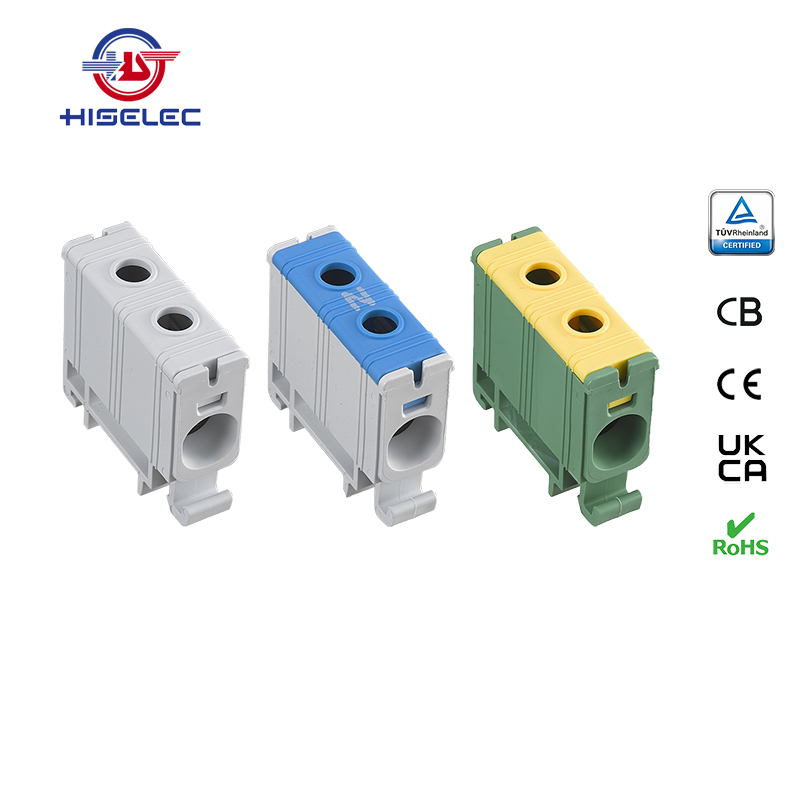

TR 35 series 1 way Al/Cu universal terminal block
-
Share:
|
Description
Technical
| Product code | Color |
Conductor (mm2) |
Nominal current In (A) |
Nominal insulation voltage Ui (V) |
Screw head hexagon diameter (mm) |
Tightening torque (Nm) |
Mounting |
Weight (g) |
Inner box package (pcs) |
Master carton package (pcs) |
||

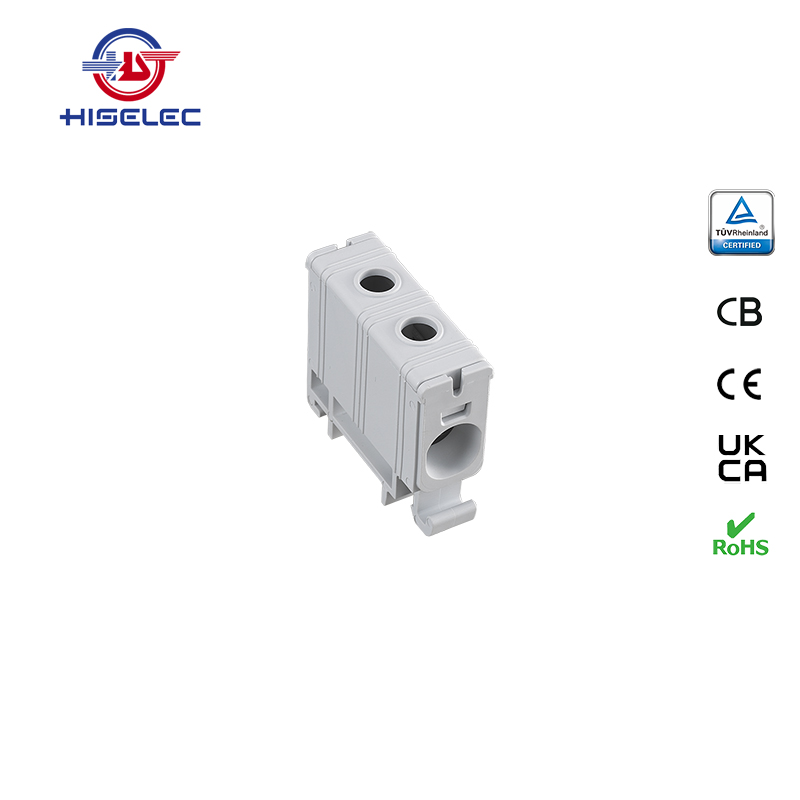

| TR 35.1-1 | Grey |
1xAl/Cu 2.5-35 mm2 |
Cu 135A Al 120A |
1000V | 4mm |
3 Nm (2.5-16 mm2) 6 Nm (25-35 mm2)
|
DIN-rail | 19.5g | 13 | 520 | ||

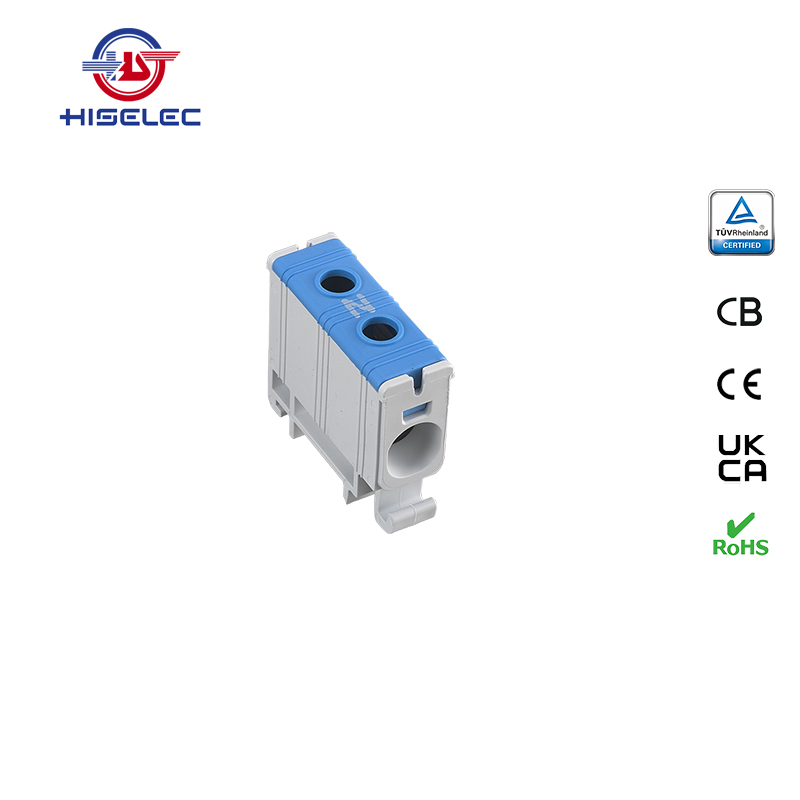

| TR 35.2-1 | Blue | |||||||||||

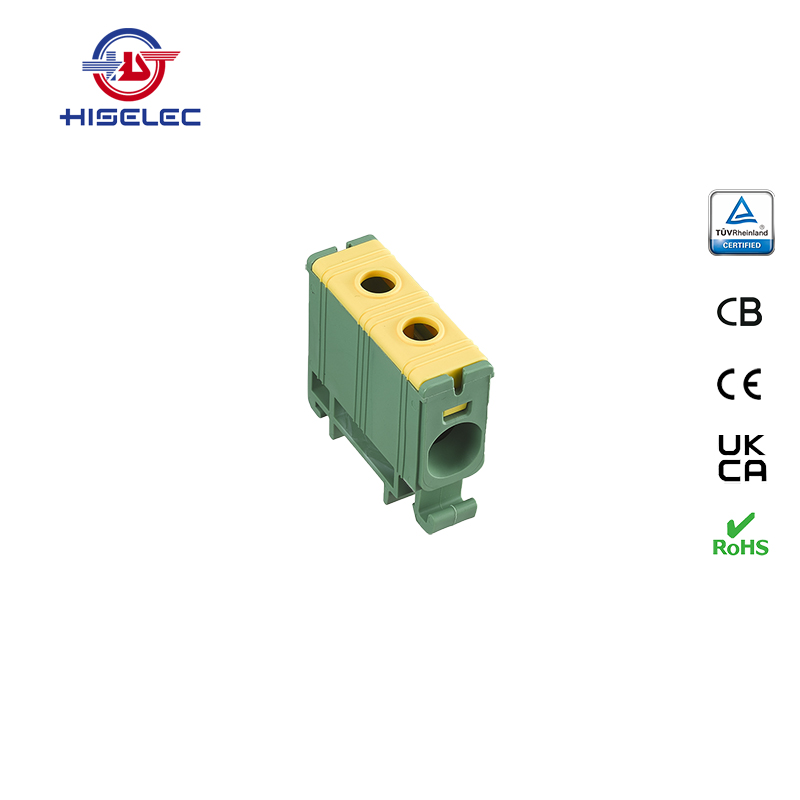

| TR 35.3-1 | Yellow/Green | |||||||||||
